SCAN DO ULTRA CSI-1274 SCAN CONVERTER HIGH RESOLUTION 1600X1280 WITH GENLOCK WRK

Current Price:499.99 USD
Ends:September 12, 2018, 0:30 UTC
  Click here to bid on this item.

COMMUNICATION SPECIALTIES INC (CSI) SCAN DO ULTRA CSI-1274 SCAN CONVERTER WITH GENLOCK HIGH RESOLUTION UP TO 1600X1280 IN EXCELLENT WORKING CONDITION+ORIGINAL OPERATING MANUALIN PDF FILE VIA EMAIL


* The superior, broadcast-quality, Scan Do® Ultra features full video processing controls, variable sizing and five memory presets.
* It is ideal for Online Video Streaming, Distance Learning/Videoconferencing, Post-production, Presentation Staging and Multimedia Events.
* Signals In:
* VGA, Mac, RGB, workstation video up to 1600x1280@60Hz
* 24 to 98 kHz horizontal sync range
* Signals Out:
* NTSC or Pal, Composite, Y/C, Component/RGB, downconverted VGA/Mac
* Features:
* Unit features auto-sensing circuit which automatically locks to resolutions up to 1600 x 1280 (24-98 kHz)
* NTSC/PAL outputs: composite, S-Video, 15 kHz RGB, component (Y, R-Y, B-Y) for Betacam & MII
* Genlock input with horizontal and subcarrier timing
* Down converter with VGA, SVGA & Mac outputs
* Video processing controls on analog outputs for contrast, brightness, color saturation, hue and RGB balance
* Continuous 50%-200% variable image sizing with panning
* Three level flicker-free video filter, continuously variable
* Advanced computer sync lock circuitry RS-232 remote control of front panel functions with Windows software
* Two computer inputs, switchable
* Test pattern generator: color bars, grey scale ramp, crosshatch, circle
* Five memory positions for sizing, position and processing controls
* Horizontal and vertical image positioning



CONDITIONS & ACCESSORIES



* Working Condition: Excellent (Bench Tested against DOA)

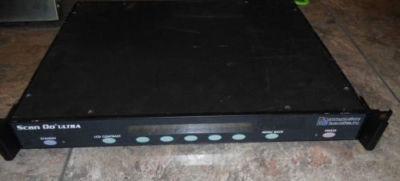

* Cosmetic Condition: Very Good W/ Some Minor Scratches (Please See Pictures For More Detail)
* Original Operating Manual In PDF Files Via Email
* AC Power Cord

FEATURES & CONNECTORS:


* MSRP: $3495.00
* Proudly Made In USA

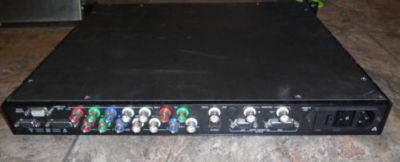

* Inputs:
* Horizontal sync frequency range:
* 31-71 kHz HD-15F for Mac input and DB-15F for VGA input.
* 5 BNCs for RGBH+V workstation input
* DB-15F for Mac output, HD-15F for VGA output.
* 5 BNCs for RGBH+V workstation output.
* Composite video output:
* BNC S-Video output: 4 pin mini-DIN
* RGBS/Y, R-Y, B-Y output: BNC x 4
* Genlock input/pass-through: BNC x 2
* Power:
* Internal universal input AC power supply.
* Input:
* 95 volts AC to 250 volts AC, 47 to 63 Hz
* UL/CSA/TUV/CE approved
* Maximum specified power:
* Scan Do Ultra: 27 Watts
* Computer & video processing:
* Input sampling:
* 24-bit (8-bits per RGB)
* Samples per computer video line:
* 640 to 800, depending on output format.
* Computer mode detection:
* Auto measurement, continuous 24-98 kHz horizontal.
* Computer sync detection:
* Auto detects sync as either separate H/V, composite or sync-on-green.
* Video processing:
* 24-bit separate RGB or YUV, depending on output format.
* Video encoding process:
* All digital encoding with 10-bit output D/A
* Differential gain: <1%
* Differential phase: <1o
* Frequency response (composite, S-Video): 6.5 MHz (-3 dB)
* Dimensions:
* 16.75 W (without rackmount ears) x 1.75 H x 14 D (inches) 426 W x 44 H x 356 D (mm)
* Weight:
* Approx. 7 lbs.; 3.15 kg
* Input Resolutions:
* 24-98 kHz (320 x 200 to 1600 x 1280), analog RGB, non-interlaced resolutions.
* Operating modes:
* RGB or VGA/Mac input selection (may have separate H/V, composite sync or sync-on-green)
* NTSC/PAL/VGA/Mac/SVGA output selection:
* VGA output:
* 640 x 480 H=31 kHz, V- 60 Hz
* SVGA output:
* 800 x 600 H - 38 kHz, V = 60
* Mac output:
* 640 x 480 H = 35 kHz, V = 67 Hz
* Genlock on/off with horizontal and subcarrier phasing.
* Output processing control:
* Brightness, contrast, color saturation, hue, RGB balance.
* Image positioning:
* Independent horizontal and vertical positioning.
* Test pattern selection: color bars, grey ramp, crosshatch, circle.
* RS-232 remote control of all front panel functions with baud rate and handshaking selection.
* Flicker reduction:
* Independent three-level selection of flicker threshold and continuous flicker reduction.
* Memory presets:
* Five locations to store size, position, output processing, input source level, flicker reduction level.

PAYMENTS & SHIPPING:


* PAYPAL
* Buyer is required to prepay for item plus $25.00 FedEx ground (48 lower states only) within 7 days of auction end.
* Thanks for bidding. Serious bidder please
* Please check out my other auctions.
* PLEASE RESOLVE ALL QUESTIONS BEFORE BIDDING.
