Attic Fan Ventilator MOTOR and BLADE fits 1050 and 1200 CFM Made in USA!

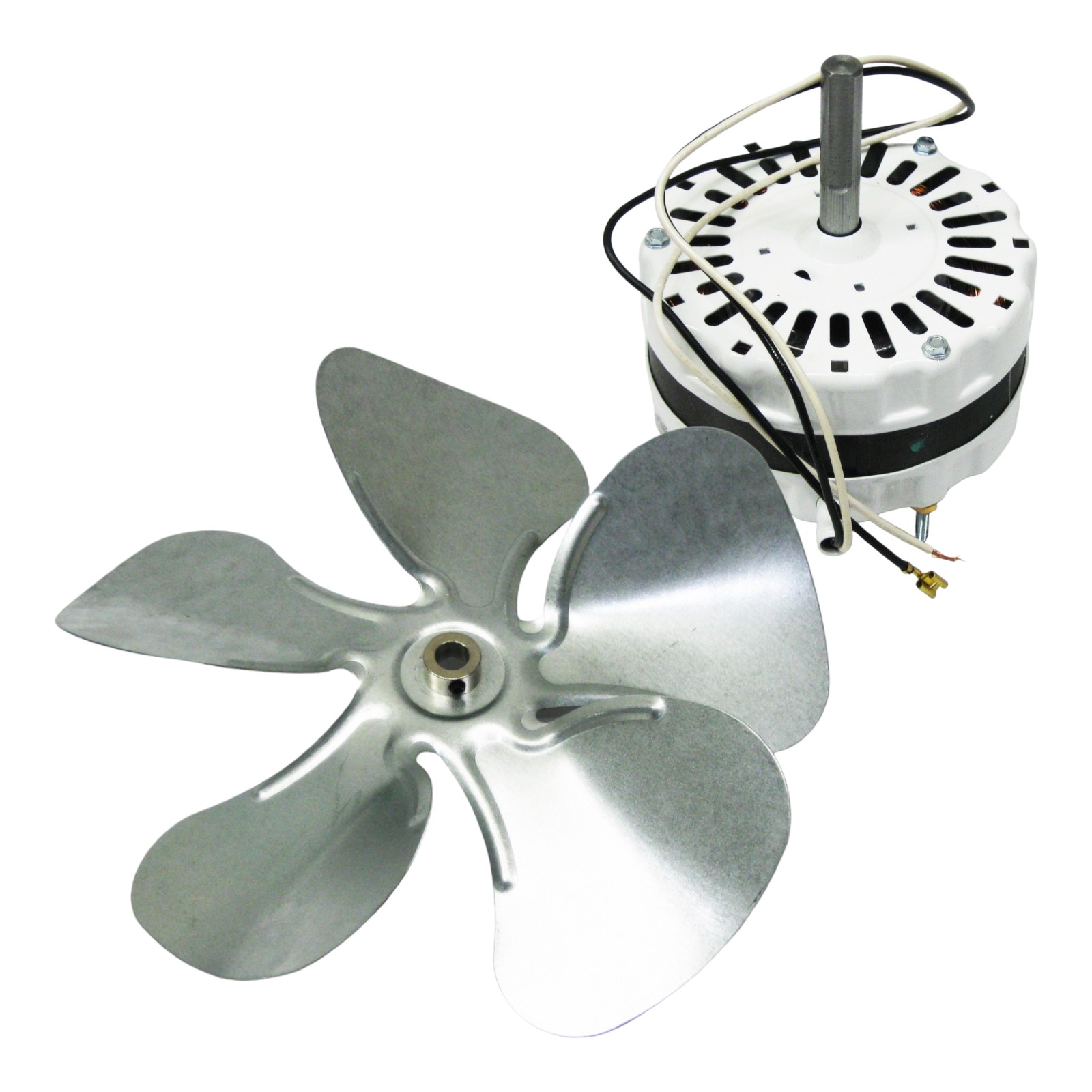

Attic Motor and Fan Blade Kit

Fits Most Attic Ventilators for 1050 CFM and 1200 CFM.

Fits Broan Models 345, 348, 355-A, 355-B, 355BK, 355BR, 355-C, 355-D, 355-E, 355-F, 358-A, 358-B, 358-C, 358-D, 358-E.

Madein USA!

Motor Specifications:

• 5" Diameter


• Shaft Diameter is 1/2" x 2 1/2" long


• 115 Volts


• 2 Wire Hook Up


• Single Speed


• 1050 RPM


• 4.3 amps - Safe Amp Range within which the Motor Can Operate in the Application is 3.3 - 4.75


• 1/10th HP


• Rotation is Clockwise Viewing Shaft End


• Mounts either as a belly band strap around the motor or with 3 studs out of the back of the motor spaced 4" apart triangularly


• Replacement for numbers F0812B3146, F0516B2516,  F05102944, 97009317, 99080267, 99080237


•



• The Metal Fan Blade specifications:


• 12" Diameter


• 5 Blade


• 32 Degree Pitch


• 1/2" Bore


• has a set screw


• Clockwise Viewing Hub Side


• Metal
