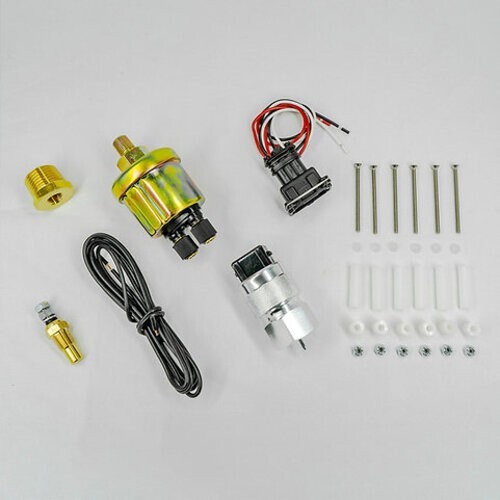

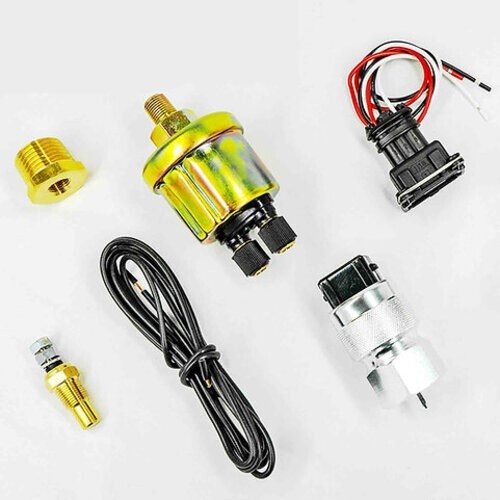

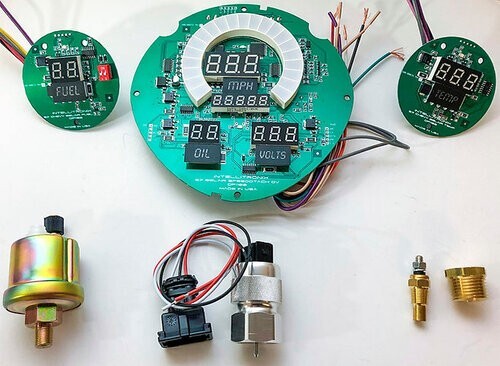

This Digital Dash comes complete with direct fit printed
circuit boards, custom fit "smoked" Plexiglas face plates, universal temperature
sending unit, oil pressure sending unit, and speedometer sending unit
(sender/sensor) for trucks without electronic transmission or cruise control,
and instructions. The Digital Dash works with your factory fuel level
sending unit and cruise control sender or electronic transmission output if so
equipped. Everything fits directly into your existing housing, but you may need
some additional 18-gauge wire.
Unit is single wire hook up and NOT PLUG & PLAY.

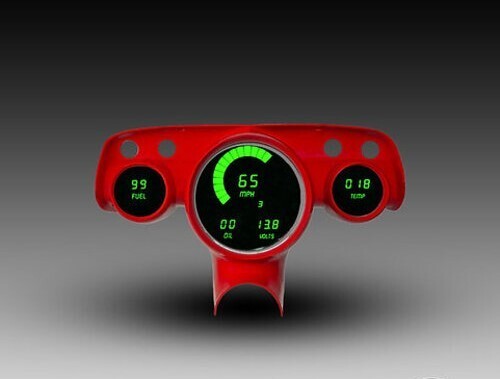

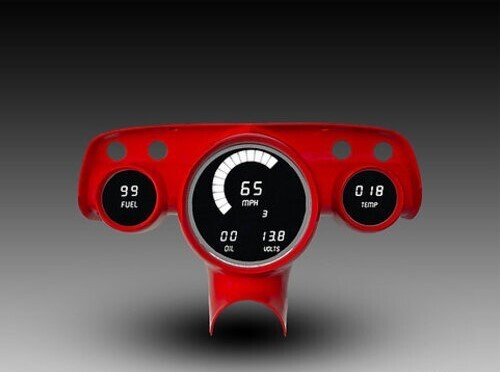

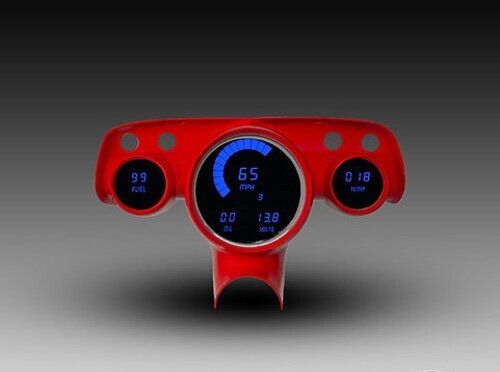

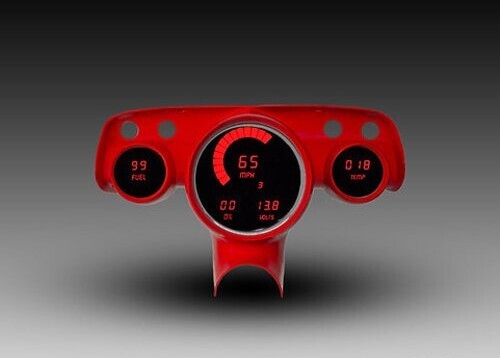

1957 Bel Air LED Digital Replacement Gauge Panel - DP1102
Cruise in your 1957 Chevrolet Bel Air with this elegant 57 Bel Air LED Digital Replacement Gauge Panel from Intellitronix. The vibrant and crisp easy to read lights will increase accuracy and give the interior of your car a completely high-tech look. Comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Manufactured to replace your factory gauges for easy installation into your existing gauge housing. The panel is built with platinum bright, long lasting CREE LEDs engineered as a complete, direct-fit solution, bolting to your existing gauge panel providing precision digital accuracy with all vital engine functions.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration; regardless of tire size, gear ratio or transmission, 0-60 time with 1⁄4 mile elapse time plus high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013, universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-6000 RPM in 300 RPM increments with programmable 4-6-8-cylinder engines. Speedometer and tachometer are a combined unit.
Water Temperature displays 100-300°F and range sender S8013 is included. If you need a 3/8" bushing, please note in the comments when you order. We send the more common 1/2" bushing.
Fuel level displays 0-99% range in 1% increments and is programmable for Jeep/Chrysler, Ford, GM, VDO (10-180 ohms) and aftermarket (240-33 ohms).
The panel also includes turn signals, high beam, brake, and 4-wheel drive indicators.
Note: If your 57 Bel Air Gauges lenses do not fit flush, you may be missing the chrome bezel set. You can purchase these from several Bel Air websites.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue, Teal and Green
SPEEDOMETER READING: Order your speedometer in either MPH
or KM/H
ORDER SPEEDOMETER & TEMPERATURE
in your choice of MPH and FAHRENHEIT or KPH and CELSIUS
Make a note at the time of checkout if you want KPH and Celsius,
otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit.
(NOTE: Not all analog gauge clusters are available in KM/H)
· Know Before You Buy!
If you have an LS
engine, then please be aware that you may need adapters (metric to nonmetric)
for our sending units. You may have to obtain them elsewhere separately, (Part
Number 8014-LS / LS Swap Kit). Also, if your LS engine is 4 cylinders,
then please send a note to the seller letting us know, so that we can set the
tachometer accordingly. The tachometer is programmable, you can set it yourself
if it comes set differently.
We always strive to be sure that your order is accurate to meet your
specific requirements. With that in mind please try to make any special
requests in "BUYERS NOTES" at checkout when placing your order. The buyer’s notes
are the section that many customers put make, model, year of vehicle etc... but
it is also used to make special requests like LS or KM/H & Celsius etc...
The Order Processing Department and Customer Service Department (e-bay
messages) are separate. Depending upon our volume of messages to be answered,
any special requests made via messages instead of an added “BUYERS NOTE” with
order, could be missed before your order ships. We try to catch them all and
coordinate with both departments but sometimes the timing can be off.
· The panel kit comes
with a Lifetime Guarantee and is made in the USA!
· If you're not 100%
completely satisfied, then just arrange to send it back within the 30-DAY
return period.
After the initial 30
days from purchase date, all warranty and service-related requests are done
directly with the manufacturer of product (Intellitronix). Keep eBay proof of
purchase and keep installation guide with all related contact information such
as phone number of MFG for warranty requests or technical assistance.
